Clicking on any item price below highlighted in blue will take you to the shopping cart with additonal details about that item.  For non-highlighted items, call 800.692.6996.

9100 Series Handrail Fittings for 9100 Handrail

 9100 (6100) Handrail
9111 Level Quarter-turn
9114 90-Degree Up Easing Easment
9112 Upeasing Easment
9110 Starting Cap with Up Easing Easement
9109 Returned End
9113 Over Easment Easing
9111-A 135-degree turn

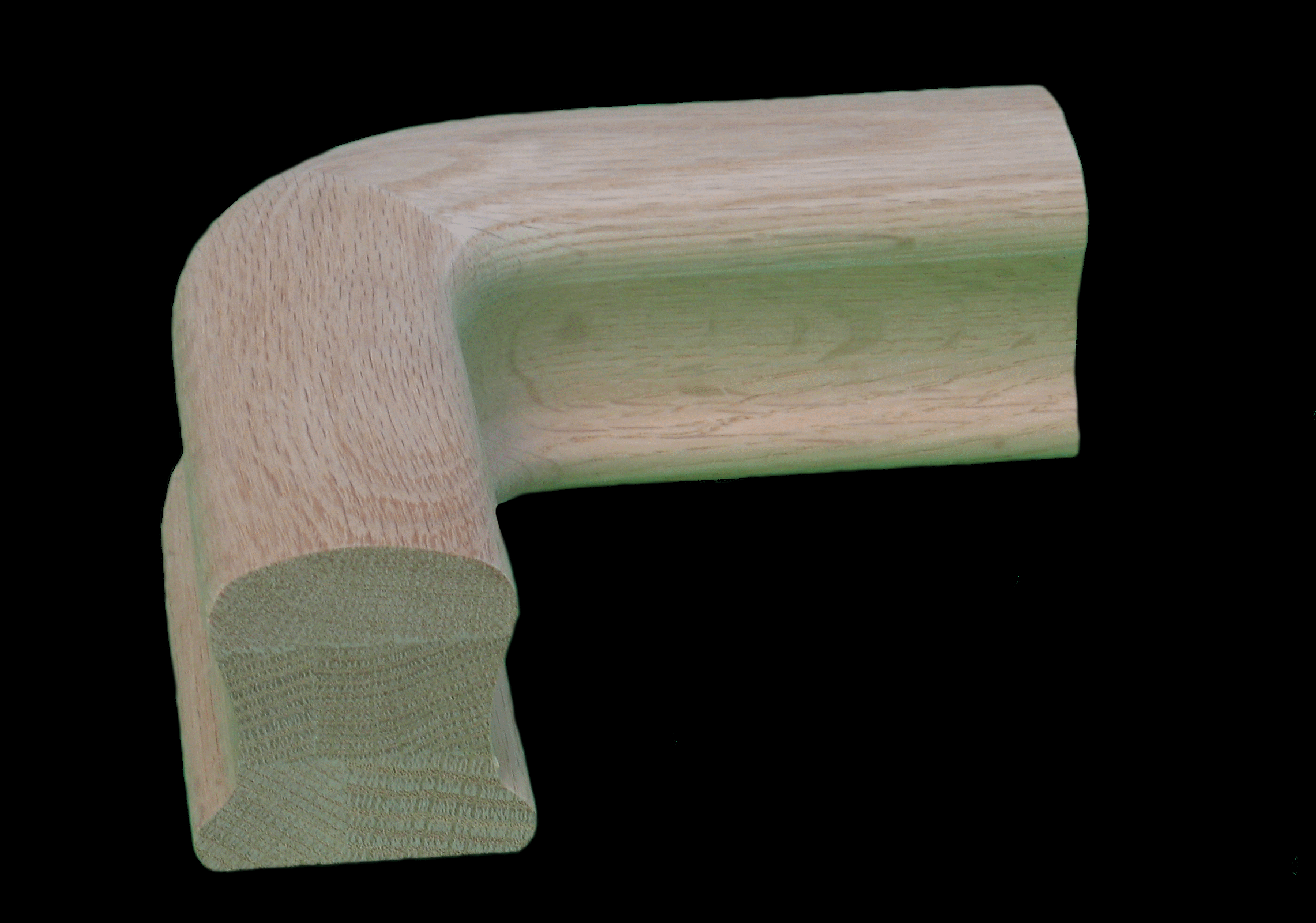

9111 Level
Quarter-turn

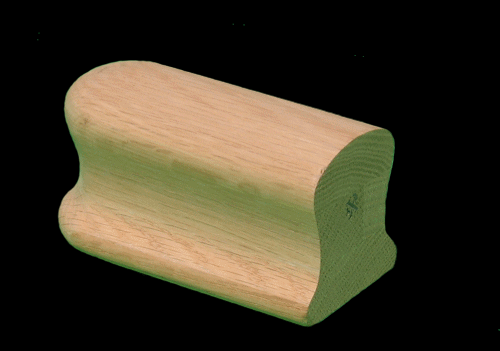

9109 Returned End

9110 Starting Cap with Upeasement

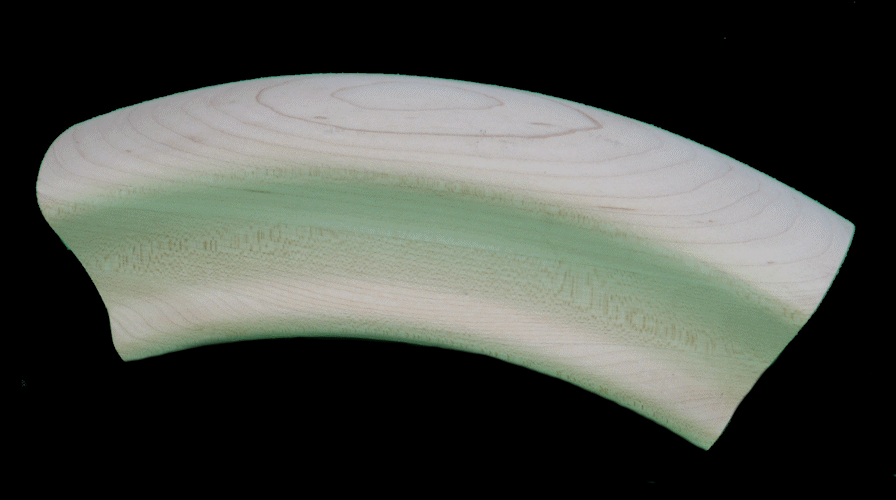

9113 Overeasement

          9111-A               135-Degree Turn

9112 Upeasment

9114 Upeasment 90-Degree
9115 Left and 9115 Right hand S-Fittings 9121 Quarter-turn Newel Cap
9119 One Opening Cap
9121-A 135-degree Cap
9120 Two Opening Tandem Cap

9115-R & 9115-L Left Hand and Right Hand S-Fittings

        9121          135-Degree Cap

        9119          One Opening Cap

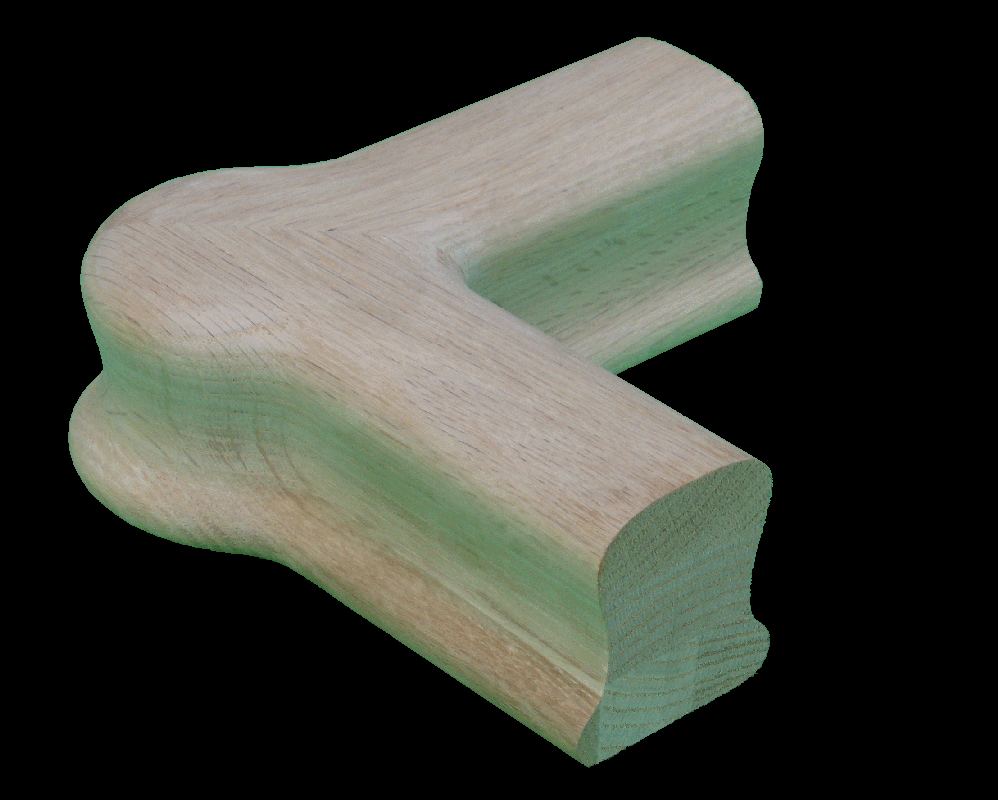

9121 Quarterturn Cap

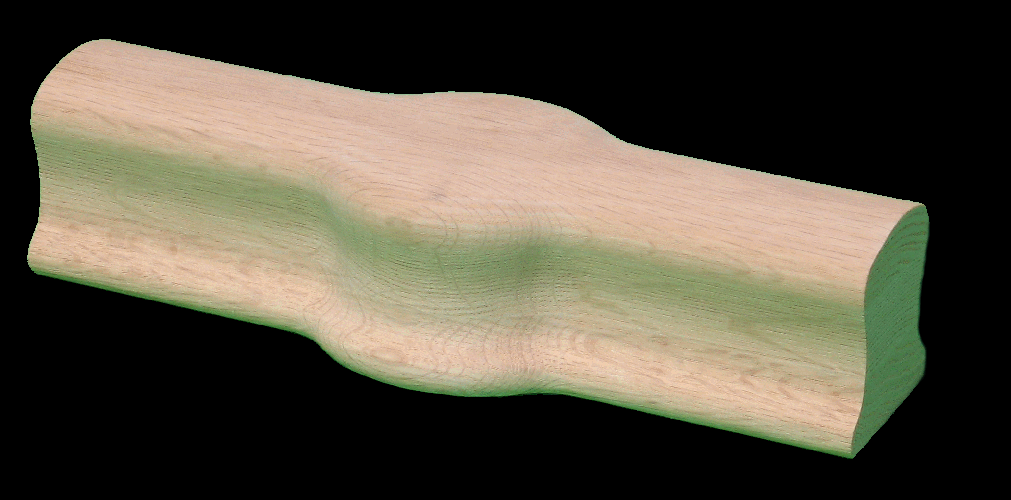

   9120 Tandem Cap

4-7/8 Inch Offset

PART NO.

Description

Red Oak

Beech

Hard Maple

Poplar

American Cherry

Soft Maple

White Oak

Hickory/
 Brazilian Cherry/ Walnut/Mahogany

9109

Returned end

$4.32

$8.17

$10.02

$5.88

$10.67

$5.74

$11.16

$12.14

9110

Cap with Upeasement

$13.22

$25.76

$34.42

$16.23

$18.49

$29.39

$52.11

$62.37

9111

Leve Quarter-turn

$9.85

$18.34

$23.31

$12.36

$25.49

$21.64

$38.38

$45.94

9111-135

135-degree turn

$16.16

$20.53

$26.63

n/a

$28.00

$26.64

$52.58

$62.91

9112

Upeasement

$8.91

$10.71

$14.95

$11.44

$23.09

$18.94

$33.57

$40.18

9113

Over easement

$8.91

$24.04

$14.95

$11.44

$51.76

$20.63

$36.58

$43.78

9114

90-degree Upease

$8.91

$31.05

$14.95

$11.44

$26.57

$14.33

$36.58

$43.78

9115LH

L.H. S-Fitting

$32.83

$44.27

$59.91

n/a

$62.26

n/a

n/a

n/a

9115RH

R.H. S-Fitting

$32.83

$44.27

$59.91

n/a

$62.26

n/a

n/a

n/a

9119

One Opeing Cap

$9.41

$12.36

$16.23

$8.71

$17.64

$13.03

$23.11

$27.63

9120

Tandem Cap

$12.62

$18.95

$18.88

$12.64

$21.58

$18.58

$32.95

$39.42

9121

Quarter-turn Cap

$12.08

$20.63

$27.17

$13.94

$20.11

$26.07

$46.21

$55.31

9121-135

135-degree Cap

$19.44

$24.18

$31.20

n/a

$33.60

$35.71

$63.31

75.76

9100 Fittings in gray are non-stocked items.  To order call (800) 692-6996
Items highlighted in red are currently on sale (while supply lasts).
9130_9135_img

9130 Left  &  9135 Right Volutes

Left Hand
9140_9145_img

9140 Left  &  9145 Right Turnouts

4-7/8” from center of rail to center of newel post
9140_9145_img02

9141 Left  &  9146 Right Turnouts

2-7/8” from center of rail to center of newel post

Right Hand
9130CAV_img

Curved Arm Volutes

CH-High For inside curved stairs  CM-Medium for for straight stairs

9130CH 9130CM

9135CAV_img

9135CH 9135CM

PART NO.

Description

Red OAK

Beech

Hard MAPLE

POPLAR

CHERRY

 Soft MAPLE

White Oak

Hickory/
 Brazilian Cherry/ Walnut/Mahogany

9130

Left Hand Volute

$46.56

$64.26

$87.69

$40.30

$98.03

$60.77

$107.75

$128.94

9130-CH

L.H. Curved Arm Volute High

$147.11

n/a

$245.09

CALL

$294.10

n/a

n/a

n/a

9130-CM

L.H. Curved Arm Volute Med

$147.11

n/a

$245.09

CALL

$294.10

n/a

n/a

n/a

9135

Right Hand Volute

$46.56

$64.26

$87.69

$40.30

$98.03

$60.77

$107.75

$128.94

9135-CH

R.H. Curved Arm Volute High

$147.11

n/a

$245.09

CALL

$294.10

n/a

n/a

n/a

9135-CM

R.H. Curved Arm Volute Med.

$147.11

n/a

$245.09

CALL

$294.10

n/a

n/a

n/a

9140

Left Hand Turnout, Large

$31.59

$53.36

$54.40

$54.14

$58.82

$46.00

$81.53

$97.58

9141

Left Hand turnout, Small

$31.59

$53.36

$54.40

$54.14

$58.82

n/a

n/a

$93.94

9145

Right Hand Turnout, Large

$31.59

$53.36

$54.40

$54.14

$58.82

$46.00

$81.53

$97.58

9146

Right Hand Turnout, Small

$31.59

$53.36

$54.40

$54.14

$58.82

n/a

n/a

$93.94

9100 Fittings in gray are non-stocked items.  To order call (800) 692-6996.
9188 1 Riser Gooseneck

9188 1-Rise Gooseneck

With Cap
9181 Left Hand 2 Riser Gooseneck 9186 Right Hand 2 Riser Gooseneck

9181 Left  & 9186 Right Hand 2-Rise Goosenecks

With Cap
9160 Right Hand 2 Riser Gooseneck 9165 Right Hand 2 Riser Gooseneck

9160 Left  & 9165 Right Hand 2-Rise Goosenecks
9188-2 2 Riser Gooseneck

9188-2  Two Riser Gooseneck
9198 One Rise Gooseneck

9198 1-Rise Gooseneck
9199 2-Rise Gooseneck

9199-2  Two Riser Gooseneck
9190 Left Hand 1 Rise Gooseneck 9195 Right Hand 1 Rise Gooseneck

9190 Left  & 9195 Right Hand 1-Rise Goosenecks
9190-2 Left Hand 2 Rise Gooseneck 9195-2 Right Hand 2 Rise Gooseneck

9190-2 Left  & 9195-2 Right Hand 2-Rise Goosenecks

Part No.

Description

Red Oak

Beech

Hard Maple

Poplar

Soft Maple

 Cherry/
White Oak

Hickory/ Brazilian Cherry/ Walnut/ Mahogany

9150

2 Rise L.H. Goosneck

$88.44

$88.44

$132.14

$70.74

$74.54

$132.14

$158.13

9155

2 Rise R.H. Gooseneck

$88.44

$88.44

$132.14

$70.74

$74.54

$132.14

$158.13

9160

2 Rise L.H. Gooseneck

$76.90

$93.53

$88.21

$74.80

$78.88

$137.72

$167.34

9165

2Rise R.H. Gooseneck

$76.90

$93.58

$88.21

$74.80

$78.88

$137.72

$167.34

9170

1 Rise L.H. Gooseneck

$54.04

n/a

n/a

n/a

n/a

n/a

n/a

9171

2 Rise R.H. Gooseneck

$57.56

$71.24

$106.36

$56.94

$60.03

$106.43

$127.37

9175

1 Rise R.H. Gooseneck

$54.04

n/a

n/a

n/a

n/a

n/a

n/a

9176

2 Rise R.H. Gooseneck

$57.56

$71.24

$106.36

$56.94

$60.03

$106.43

$127.37

9181

2 Rise L.H. Gooseneck

$61.28

$73.99

$84.97

$59.15

$78.72

$110.47

$132.29

9186

2 Rise R.H. Gooseneck

$61.28

$73.99

$84.97

$59.15

$78.72

$110.47

$132.29

9188

1 Rise Gooseneck w/Tandem

$49.44

n/a

n/a

n/a

n/a

n/a

n/a

9188-2

2 Rise Gooseneck w/Tandem

$51.12

$61.75

$70.11

$49.35

$52.05

$92.19

$110.41

9190

1 Rise L.H. Gooseneck

$66.04

$111.86

n/a

$89.43

$94.28

$167.02

$200.03

9190-2

2 Rise L.H. Gooseneck

$81.85

$117.83

$96.94

$94.21

$99.33

$175.95

$210.70

9195

1 Rise R.H. Gooseneck

$66.04

$111.86

n/a

$89.43

$94.28

$167.02

$200.03

9195-2

2 Rise R.H. Gooseneck

$81.85

$117.83

$96.94

$94.21

$99.33

$175.95

$210.70

9198

1 Rise Gooseneck no cap

$33.90

n/a

n/a

n/a

n/a

n/a

n/a

9199

2 Rise Gooseneck no cap

$42.49

$50.55

$82.81

$40.39

$74.19

$110.21

$126.49

No Cap
9171 Left Hand 2 Rise Gooseneck 9176 Right Hand 2 Rise Gooseneck

9171 Left  & 9176 Right Hand 2-Rise Goosenecks

No Cap
9170 Left and 9175 Right Hand 1 Rise Goosenecks

9170 Left  & 9175 Right Hand 1-Rise Goosenecks
